Right Angle Prisms
| Dimension: | 0.5mm ~300.0mm |
| Scratch & Dig: | 80/50~10/5 |
| Flatness: | λ/2~λ/10 |
| Angle Tolerance: | 6arc min ~ 2 arc Sec |
| Number of Polished Faces: | 3 (Triangular Faces are Fine Ground) |

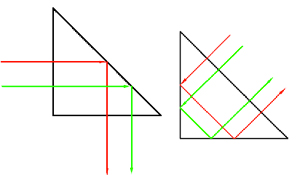

Right-Angle Prisms can be used to deviate a light path by 90° or 180°, depending on which surface is used as the input for the light source. These prisms are fabricated from N-BK7, UV fused silica, N-SF11 etc
They can be AR coated or metal coated.
